MBR1060CTR - 10 Ampere Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers

This page provides the datasheet information for the MBR1060CTR, a member of the MBR1045CTR 10 Ampere Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers family.

Datasheet Summary

Features

  • Standard MBR matured technology with high reliablity Low forward voltage drop High current capability Low reverse leakage current High surge current capability.

📥 Download Datasheet

Datasheet preview – MBR1060CTR

Datasheet Details

Part number MBR1060CTR
Manufacturer Thinki Semiconductor
File Size 669.72 KB
Description 10 Ampere Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers
Datasheet download datasheet MBR1060CTR Datasheet
Additional preview pages of the MBR1060CTR datasheet.

📁 Similar Datasheet

  • MBR1060CT - 10A SCHOTTKY BARRIER RECTIFIER (Diodes)
  • MBR1060CT - 10A High Power Schottky Barrier Rectifiers (CITC)
  • MBR1060CT - Schottky Rectifier (Luguang Electronic)
  • MBR1060CT - Schottky Rectifier (Pan Jit)
  • MBR1060CT - Dual Common Cathode Schottky Rectifiers (Taiwan Semiconductor)
  • MBR1060CT - 10A SCHOTTKY BARRIER RECTIFIER (Yea Shin Technology)
  • MBR1060CT - Schottky Barrier Rectifier (INCHANGE)
  • MBR1060CT - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
  • MBR1060CT - Full Plastic Dual Schottky Barrier Power Rectifiers (MOSPEC)
  • MBR1060CT - SCHOTTKY BARRIER RECTIFIERS (LITE-ON)
Other Datasheets by Thinki Semiconductor
  • MBR10100CTR - 10 Ampere Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers
  • MBR10200CTR - 10 Ampere Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers
  • MBR1045CTR - 10 Ampere Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers
  • MBR20100CA - 20.0 Ampere Dual Common Anode Schottky Barrier Rectifiers
  • MBR20100CT - Schottky Barrier Rectifiers
  • MBR20100CTR - 20 Amperes Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers
  • MBR20150CA - 20.0 Ampere Dual Common Anode Schottky Barrier Rectifiers
  • MBR20150CTR - 20 Ampere Heatsink Dual Common Anode Schottky Half Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

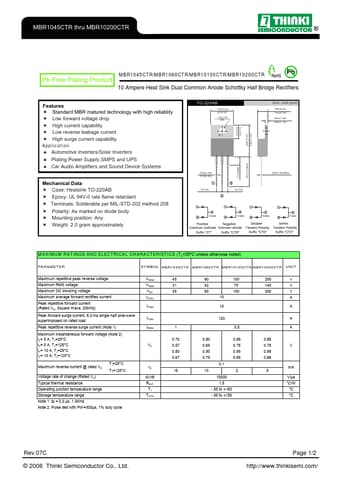

MBR1045CTR thru MBR10200CTR ® Pb MBR1045CTR/MBR1060CTR/MBR10100CTR/MBR10200CTR Pb Free Plating Product 10 Ampere Heat Sink Dual Common Anode Schottky Half Bridge Rectifiers Features Standard MBR matured technology with high reliablity Low forward voltage drop High current capability Low reverse leakage current High surge current capability Application Automotive Inverters/Solar Inverters Plating Power Supply,SMPS and UPS Car Audio Amplifiers and Sound Device Systems Mechanical Data Case: Heatsink TO-220AB Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity: As marked on diode body Mounting position: Any Weight: 2.0 gram approximately TO-220AB .419(10.66) .387(9.85) .139(3.55) MIN Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .
