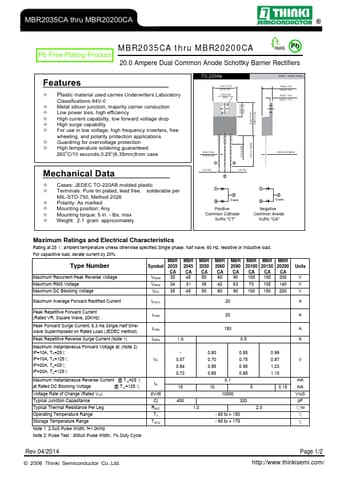

MBR2035CA
Features
Plastic material used carries Underwriters Laboratory
Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Guardring for overvoltage protection High temperature soldering guaranteed: 260o C/10 seconds,0.25”(6.35mm)from case
TO-220AB
.419(10.66) .387(9.85) .139(3.55)
.038(0.96) .019(0.50)
.269(6.85) .226(5.75) .624(15.87) .548(13.93)
Unit : inch (mm)
.196(5.00) .163(4.16) .054(1.39) .045(1.15)
.025(0.65)MAX
.177(4.5)MAX .50(12.7)MIN
Mechanical Data
Cases: JEDEC TO-220AB molded plastic Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any Mounting torque: 5 in.
- lbs. max Weight: 2.1 gram approximately
.1(2.54)
.1(2.54)
Case
Positive mon Cathode
Suffix "CT"
Case
Negative mon...
