MBRF20200CT, MBRF2040CT 20.0 Ampere Insulated FullPak High Voltage Schottky Barrier Rectifiers

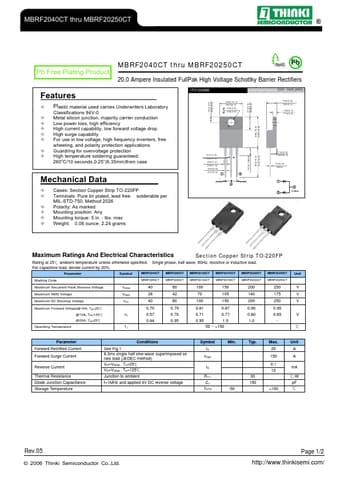

📥 Download Datasheet  Datasheet Preview Page 1

Description

MBRF2040CT thru MBRF20250CT ® Pb Free Plating Product MBRF2040CT thru MBRF20250CT Pb 20.0 Ampere Insulated FullPak High Voltage Schottky Barrier .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF20200CT, MBRF2040CT. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
MBRF20200CT, MBRF2040CT
Manufacturer
Thinki Semiconductor
File Size
968.43 KB
Datasheet
MBRF2040CT-ThinkiSemiconductor.pdf
Description
20.0 Ampere Insulated FullPak High Voltage Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBRF20200CT, MBRF2040CT.
Please refer to the document for exact specifications by model.

Features

* Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, and

Applications

* Guardring for overvoltage protection High temperature soldering guaranteed: 260oC/10 seconds,0.25”(6.35mm)from case Mechanical Data Cases: Section Copper Strip TO-220FP Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026 Polarity: As marked Mounting position: Any Mounting
