MJE13005 - (MJE13005 Series) Silicon NPN Power Transistor

The MJE13005 by Thinki Semiconductor is a (MJE13005 Series) Silicon NPN Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

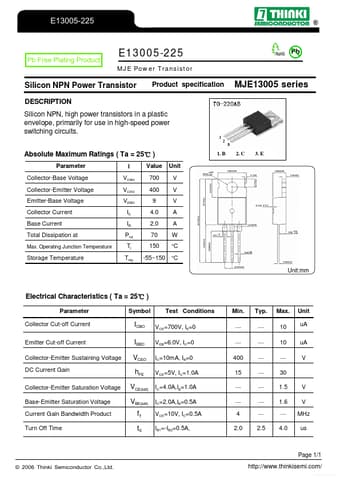

Official preview page of the MJE13005 (MJE13005 Series) Silicon NPN Power Transistor datasheet (Thinki Semiconductor).

Datasheet Details

Part number MJE13005
Manufacturer Thinki Semiconductor
File Size 166.50 KB
Description (MJE13005 Series) Silicon NPN Power Transistor
Datasheet download datasheet MJE13005_ThinkiSemiconductor.pdf
Additional preview pages of the MJE13005 datasheet.

MJE13005 Product details

Description

Product specification MJE13005 series Silicon NPN, high power transistors in a plastic envelope, primarily for use in high-speed power switching circuits.Absolute Maximum Ratings ( Ta = 25℃ ) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Total Dissipation at Max.Operating Junction Temperature 1. B 2. C 3. E l VCBO VCEO VEBO IC IB Ptot Tj Tstg Value 700 400 9 4.0 2.0 70 150 -55~150 Unit V V V A A W o o C Storage Tempera
