MUR1620AT - 16 Ampere Heatsink Common Anode Fast Recovery Half Bridge Rectifiers

Datasheet Summary

Features

  • Latest GPP technology with super fast recovery time Low forward voltage drop High current capability Low reverse leakage current High surge current capability.

📥 Download Datasheet

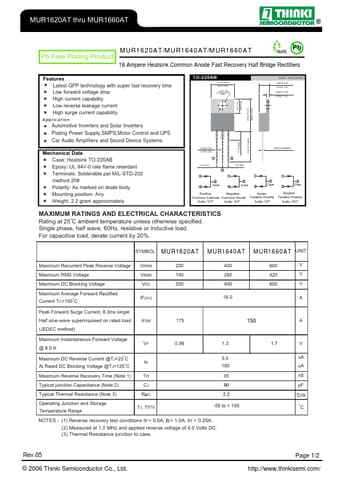

Datasheet preview – MUR1620AT

Datasheet Details

Part number MUR1620AT
Manufacturer Thinki Semiconductor
File Size 311.71 KB
Description 16 Ampere Heatsink Common Anode Fast Recovery Half Bridge Rectifiers
Datasheet download datasheet MUR1620AT Datasheet
Additional preview pages of the MUR1620AT datasheet.

📁 Similar Datasheet

  • MUR1620 - 16A GLASS PASSIVATED SUPERFAST RECTIFIER (WON-TOP)
  • MUR1620 - 16 Amp Super Fast Glass Passivated Rectifier (MCC)
  • MUR1620CD - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
  • MUR1620CT - 16 Amp Super Fast Glass Passivated Rectifier (MCC)
  • MUR1620CT - ULTRAFAST RECTIFIERS (ON Semiconductor)
  • MUR1620CT - ULTRAFAST RECTIFIERS 8 AMPERES (Motorola)
  • MUR1620CT - 200V Ultrafast Dual Diodes (Intersil Corporation)
  • MUR1620CT - ULTRAFAST RECTIFIERS (EIC)
  • MUR1620CT - Switchmode Power Rectifiers (Taiwan Semiconductor Company)
  • MUR1620CT - Switchmode Power Rectifiers (Luguang Electronic)
Other Datasheets by Thinki Semiconductor
  • MUR1620 - Ultra Fast Recovery Rectifiers
  • MUR1620CA - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • MUR1620CT - 16.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier
  • MUR1620CTA - 16.0 Ampere Heatsink Common Anode Ultra Fast Recovery Rectifiers
  • MUR1620CTD - 16.0 Ampere Heatsink Common Anode Ultra Fast Recovery Rectifiers
  • MUR1620D - 16.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier
  • MUR1620E - 16.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier
  • MUR1620FCT - Ultra Fast Recovery Rectifier

Full PDF Text Transcription

Click to expand full text
MUR1620AT thru MUR1660AT ® MUR1620AT/MUR1640AT/MUR1660AT Pb Free Plating Product Pb 16 Ampere Heatsink Common Anode Fast Recovery Half Bridge Rectifiers Features Latest GPP technology with super fast recovery time Low forward voltage drop High current capability Low reverse leakage current High surge current capability Application Automotive Inverters and Solar Inverters Plating Power Supply,SMPS,Motor Control and UPS Car Audio Amplifiers and Sound Device Systems Mechanical Data Case: Heatsink TO-220AB Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity: As marked on diode body Mounting position: Any Weight: 2.2 gram approximately TO-220AB .419(10.66) .387(9.85) .139(3.55) MIN Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .
