MUR3005PT - 30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes

Product Overview

Thinki Semiconductor

Part number	MUR3005PT
Manufacturer	Thinki Semiconductor
File Size	731.70 KB
Description	30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes
Datasheet	MUR3005PT Datasheet

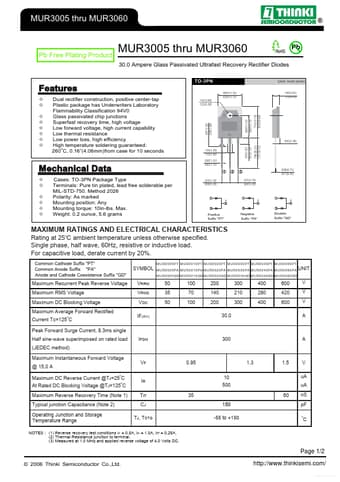

Additional preview pages of the MUR3005PT datasheet.

Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classification 94V0 Glass passivated chip junctions Superfast recovery time, high voltage Low forward voltage, high current capability Low thermal resistance Low power loss, high efficiency High temperature soldering guaranteed: o 260 C, 0.16”(4.06mm)from case for 10 seconds .142(3.60) .125(3.20) .087(2.20) .070(1.80) .600(15.25) .580(14.75) .776(19.70) .819(20.80) .095(2.40) .126(3.20).
