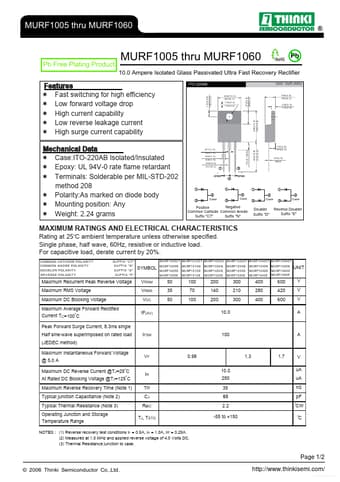

10.0 Ampere Isolated Glass Passivated Ultra Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: MURF1040E, MURF1005CT. Please refer to the document for exact specifications by model.
MURF1040E Product details
Features
¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability Mechanical Data ¬ Case:ITO-220AB Isolated/Insulated ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity:As marked on diode body ¬ Mounting position: Any ¬ Weight: 2.24 grams
Unit : inch (mm)
.189(4.8) .165(4.2) .130(3.3) .114(2.9)
.112(2.85) .100(2.55)
.272(6.9) .248(6.3) .606(15.4) .583(14.8).
