SF2006GA, SF2001G - (SF2001GA - SF2008GA) 20.0 Ampere Dual Unipolar-Doubler Polarity Superfast Recovery Diode

Thinki Semiconductor

Datasheet Details

Part number	SF2006GA, SF2001G
Manufacturer	Thinki Semiconductor
File Size	625.37 KB
Description	(SF2001GA - SF2008GA) 20.0 Ampere Dual Unipolar-Doubler Polarity Superfast Recovery Diode
Datasheet	SF2001G_ThinkiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SF2006GA, SF2001G. Please refer to the document for exact specifications by model.

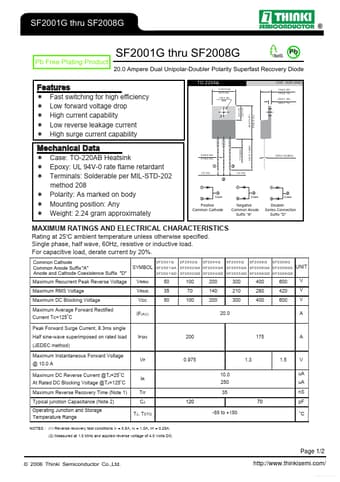

Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .269(6.85) .226(5.75) ¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability ¬ Case: TO-220AB Heatsink ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity: As marked on body ¬ Mounting position: Any ¬ Weight: 2.24 gram approximately .624(15.87) .50(12.7)MIN .038(0.96) .019(0.50) .177(4.5.
