TIP41B, TIP41 Datasheet - Thinki Semiconductor

TIP41B - NPN Silicon Epitaxial Power Transistor

TIP41B Features

* Medium Power Linear Switching Applications

* Complement to TIP42/TIP42A/TIP42B/TIP42C 9.90±0.20 φ3.60±0.20 4.50±0.20 1.30±0.20 6.50±0.20 15.70±0.20 2.80±0.20 9.19±0.20 COLLECTOR 2 BASE 1 3 EMITTER 1. BASE 2. COLLECTOR 3. EMITTER 3.02±0.20 13.08±0.20 1.27±0.20 1.52±0.20 2.40±

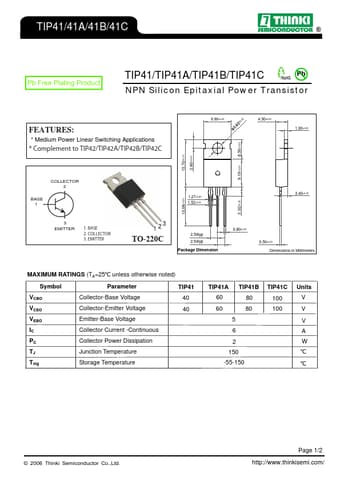

TIP41-ThinkiSemiconductor.pdf

TIP41B Datasheet Preview — This datasheet PDF includes multiple part numbers: TIP41B, TIP41. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TIP41B, TIP41

Manufacturer:

Thinki Semiconductor

File Size:

324.43 KB

Description:

Npn silicon epitaxial power transistor.

Note:

This datasheet PDF includes multiple part numbers: TIP41B, TIP41.
Please refer to the document for exact specifications by model.
