U16C10C - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers

Download the U16C10C datasheet PDF (U16C05C included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 16.0 ampere glass passivated junction ultrafast recovery rectifiers.

Features

  • Fast switching for high efficiency Low forward voltage drop High current capability Low reverse leakage current High surge current capability.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (U16C05C_ThinkiSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number U16C10C
Manufacturer Thinki Semiconductor
File Size 318.25 KB
Description 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
Datasheet download datasheet U16C10C Datasheet

📁 Similar Datasheet

  • U16C10 - FAST RECTIFIERS (Mospec Semiconductor)
  • U16C100 - POWER RECTIFIERS(16A/700-1000V) (Mospec Semiconductor)
  • U16C15 - FAST RECTIFIERS (Mospec Semiconductor)
  • U16C05 - FAST RECTIFIERS (Mospec Semiconductor)
  • U16C20 - FAST RECTIFIERS (Mospec Semiconductor)
  • U16C30 - Power Rectifiers (Mospec Semiconductor)
  • U16C40 - Power Rectifiers (Mospec Semiconductor)
  • U16C50 - Power Rectifiers (Mospec Semiconductor)
  • U16C60 - Power Rectifiers (Mospec Semiconductor)
  • U16C70 - Power Rectifiers (Mospec Semiconductor)
Other Datasheets by Thinki Semiconductor
  • U16C10A - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • U16C10D - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • U16C05A - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • U16C05C - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • U16C05D - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • U16C20A - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • U16C20C - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers
  • U16C20D - 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

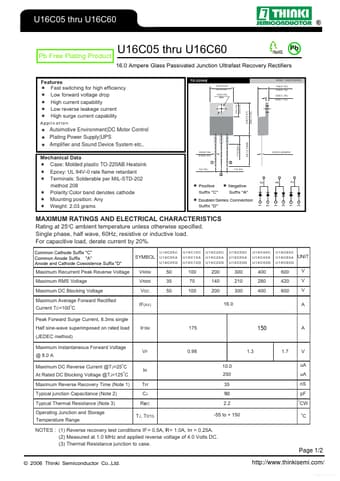

U16C05 thru U16C60 ® Pb Free Plating Product U16C05 thru U16C60 TO-220AB .419(10.66) .387(9.85) .139(3.55) MIN Pb 16.0 Ampere Glass Passivated Junction Ultrafast Recovery Rectifiers Features Fast switching for high efficiency Low forward voltage drop High current capability Low reverse leakage current High surge current capability Application Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .269(6.85) .226(5.75) .624(15.87) .50(12.7)MIN Mechanical Data Case: Molded plastic TO-220AB Heatsink Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity:Color band denotes cathode Mounting position: Any Weight: 2.03 grams .038(0.96) .019(0.50) .177(4.
