SCK15, SCK05 Datasheet - Thinking Electronic

SCK15, SCK05, Power Thermistor

NTC Thermistor：SCK Series Power Thermistor for Limiting Inrush Current * .

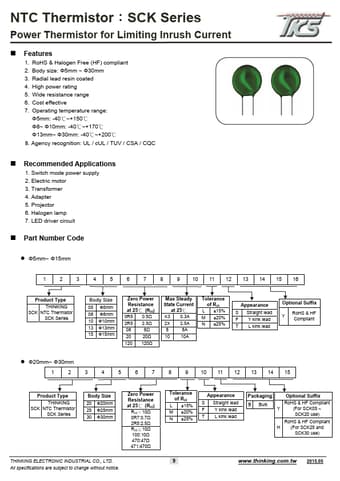

SCK05-ThinkingElectronic.pdf

SCK15 Datasheet Preview — This datasheet PDF includes multiple part numbers: SCK15, SCK05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SCK15, SCK05

Manufacturer:

Thinking Electronic

File Size:

615.05 KB

Description:

Power Thermistor

Note:

This datasheet PDF includes multiple part numbers: SCK15, SCK05.
Please refer to the document for exact specifications by model.

Features

* 1. RoHS & Halogen Free (HF) compliant 2. Body size: Ф5mm ~ Ф30mm 3. Radial lead resin coated 4. High power rating 5. Wide resistance range 6. Cost effective 7. Operating temperature range: Ф5mm: -40℃~+150℃ Ф8~ Ф10mm: -40℃~+170℃ Ф13mm~ Ф30mm: -40℃~+200℃ 8. Agency recognition: UL / cUL / TUV / CSA / C

Applications

* 1. Switch mode power supply 2. Electric motor 3. Transformer 4. Adapter 5. Projector 6. Halogen lamp 7. LED driver circuit
* Part Number Code
* Ф5mm~ Ф15mm 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Product Type THINKING SCK NTC Thermistor SCK Series Body Size 05 Ф5mm 08 Ф8mm 10 Ф10mm 13 Ф13m
