DSS315 - Surface Mount Schottky Barrier Rectifier

This page provides the datasheet information for the DSS315, a member of the DSS32 Surface Mount Schottky Barrier Rectifier family.

Datasheet Summary

Features

  • Metal silicon junction, majority carrier conduction.
  • For surface mounted.

📥 Download Datasheet

Datasheet preview – DSS315

Datasheet Details

Part number DSS315
Manufacturer Tinysemi
File Size 708.35 KB
Description Surface Mount Schottky Barrier Rectifier
Datasheet download datasheet DSS315 Datasheet

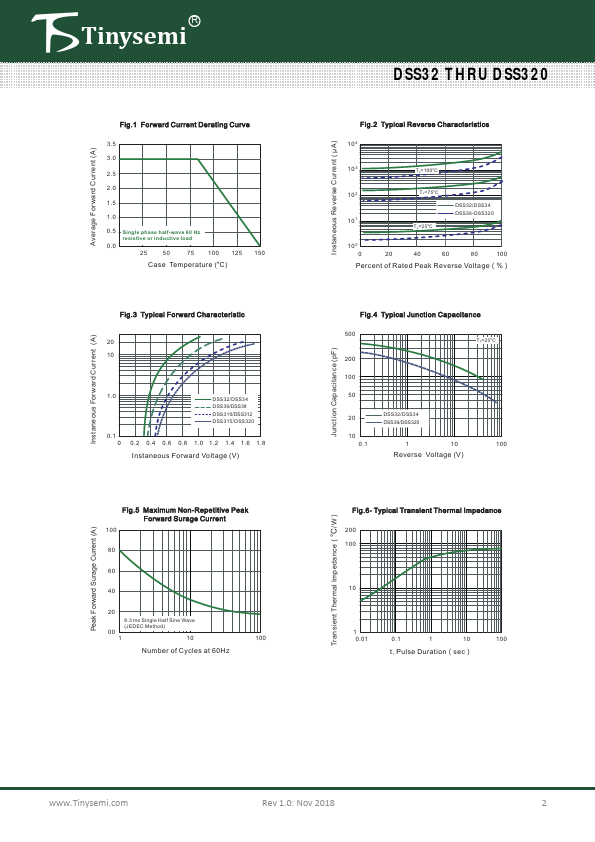

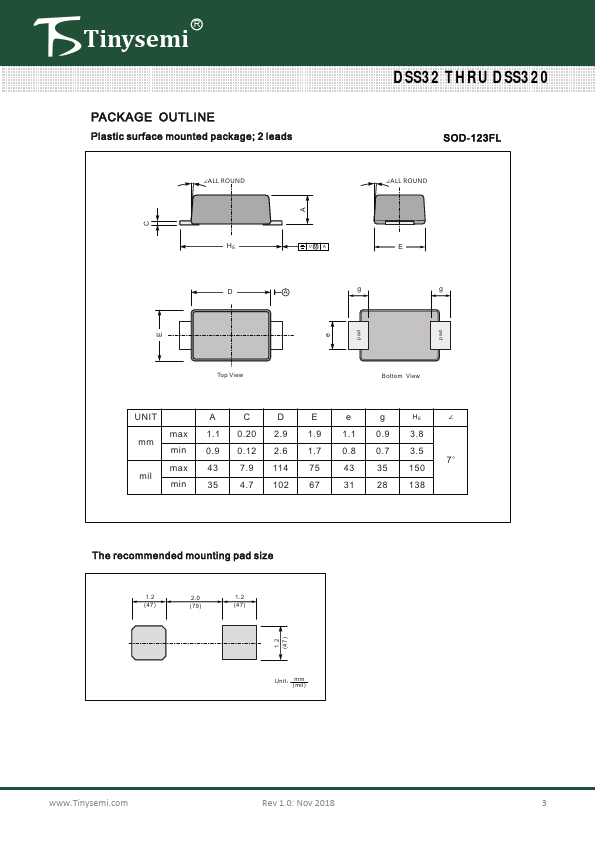

Additional preview pages of the DSS315 datasheet.

📁 Similar Datasheet

  • DSS310 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Formosa MS)
  • DSS310 - 3.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Slkor)
  • DSS30101L - NPN SURFACE MOUNT TRANSISTOR (Diodes)
  • DSS306 - (DSS1/2/3) Dip Slide Switches (Fujisoku Corporation)
  • DSS30x - (DSS1/2/3) Dip Slide Switches (Fujisoku Corporation)
  • DSS32 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Formosa MS)
  • DSS32 - 3.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Slkor)
  • DSS33 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Formosa MS)
  • DSS33 - 3.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Slkor)
  • DSS34 - SCHOTTKY BARRIER RECTIFIER (SANGDEST MICROELECTRONICS)
Other Datasheets by Tinysemi
  • DSS310 - Surface Mount Schottky Barrier Rectifier
  • DSS312 - Surface Mount Schottky Barrier Rectifier
  • DSS32 - Surface Mount Schottky Barrier Rectifier
  • DSS320 - Surface Mount Schottky Barrier Rectifier
  • DSS34 - Surface Mount Schottky Barrier Rectifier
  • DSS36 - Surface Mount Schottky Barrier Rectifier
  • DSS38 - Surface Mount Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text

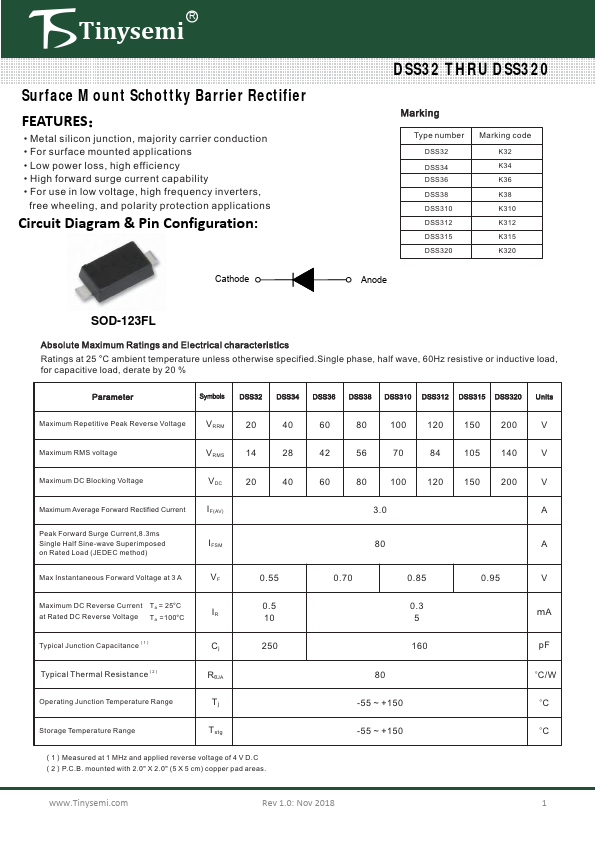

SR Tinysemi Surface Mount Schottky Barrier Rectifier FEATURES： • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Circuit Diagram & Pin Configuration: Cathode DSS32 THRU DSS320 Marking Type number DSS32 DSS34 DSS36 DSS38 DSS310 DSS312 DSS315 DSS320 Marking code K32 K34 K36 K38 K310 K312 K315 K320 Anode SOD-123FL Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.
