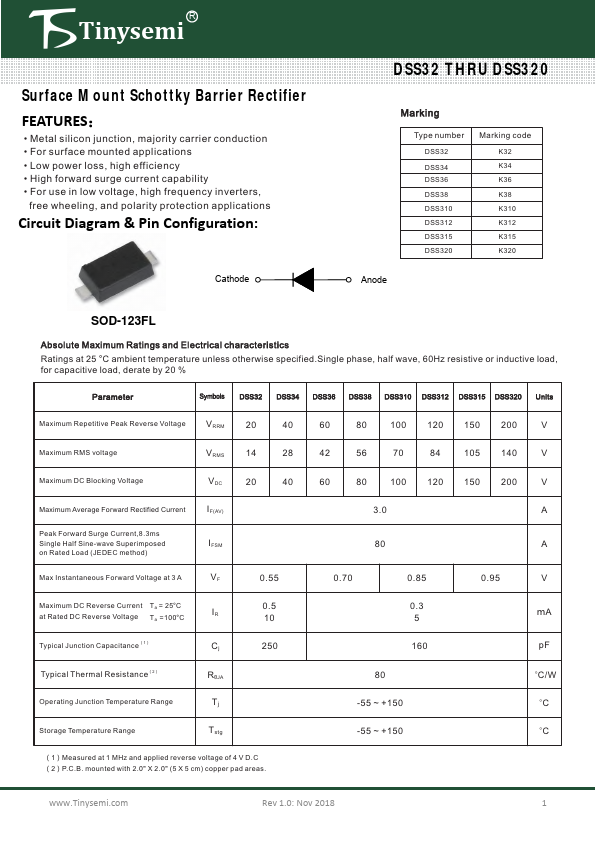

DSS320
FEATURES
：
- Metal silicon junction, majority carrier conduction
- For surface mounted applications
- Low power loss, high efficiency
- High forward surge current capability
- For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
Circuit Diagram & Pin Configuration:
Cathode
DSS32 THRU DSS320
Marking
Type number DSS32 DSS34 DSS36 DSS38 DSS310 DSS312 DSS315 DSS320
Marking code K32 K34 K36 K38 K310 K312 K315 K320
Anode

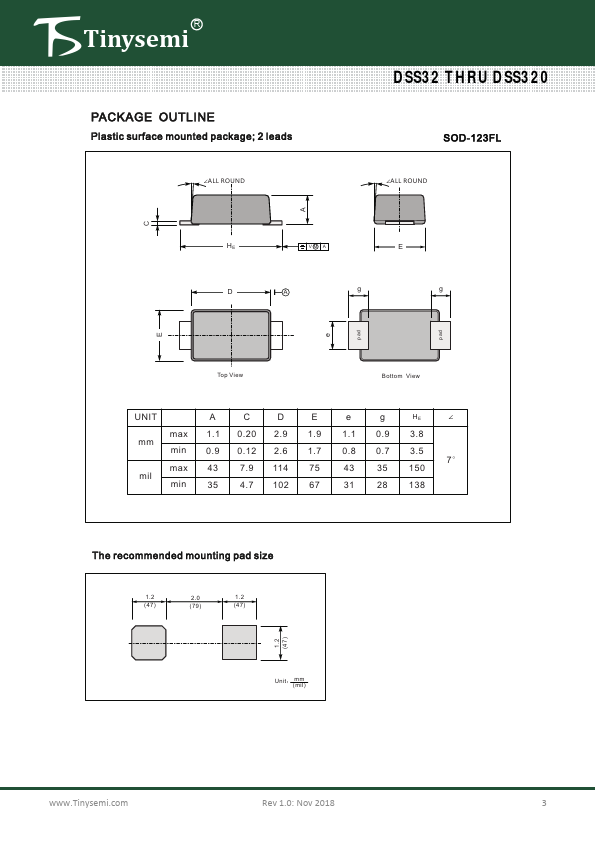

SOD-123FL
Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 %
Parameter
Symbols DSS32 DSS34 DSS36 DSS38 DSS310 DSS312 DSS315 DSS320 Units
Maximum Repetitive Peak Reverse Voltage
VRRM
100 120 150 200
Maximum RMS voltage
VRMS
105 140
Maximum DC Blocking Voltage
100 120 150...
