TCRC0810, TCRC0304 Power Choke Coil Inductors

TCRC0810 Description

* Product Introduction Power Choke Coil Inductors limit the alternating current through the chokes..

TCRC0810 Features

* :
* Ultra low cost.
* Shielded construotion.
* High current rating up to DC 33 Amp.
* High frequency range up to 1.0MHz.
* Very low DC resistance.

TCRC0810 Applications

* :
* Motherboards for laptop and desdtop computers.
* DC/DC converter in distributed power systems or VRM Applications. Inductor for general purpose use. Choke coils, also known as: Choke, differential mode inductors, is used to limit the alternating current through the coil, high-frequency

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TCRC0810, TCRC0304. Please refer to the document for exact specifications by model.

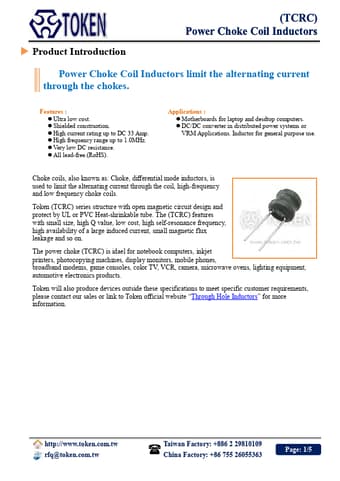

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TCRC0810, TCRC0304
Manufacturer
Token
File Size
315.47 KB
Datasheet
TCRC0304-Token.pdf
Description
Power Choke Coil Inductors
Note
This datasheet PDF includes multiple part numbers: TCRC0810, TCRC0304.
Please refer to the document for exact specifications by model.
