SMDJ43C Datasheet - Topdiode

SMDJ43C Surface Mount TVS

Tel: +86 (0)769 8252 3211 Skype: topdiode Email: info@topdiode.com Website: www.topdiode.com Surface Mount TVS SMDJ5.0 SMDJ170CA 3000 Watt Peak Power Dimension Specification SMD (DO-214AB) Dim Millimeters Inches Min Max Min Max A 6.60 7.11 0.260 0.280 B 5.59 6.22 0.220 0.245 C 2.90 3.20 0.114 0.126 D 0.125 0.305 0.006 0.012 E 7.75 8.13 0.305 0.320 F 0.203 0.008 G 2.06 2.62 0.079 0.103 H 0.76 1.52 0.030 0.060 Type Num.

SMDJ43C Datasheet (296.42 KB)

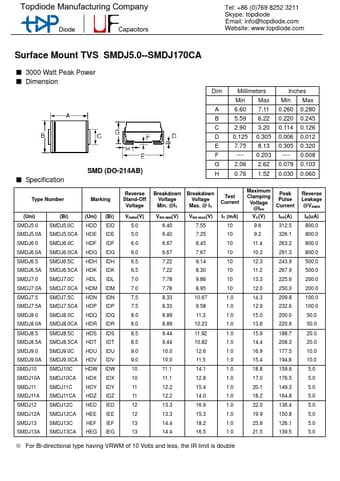

Preview of SMDJ43C PDF
SMDJ43C Datasheet Preview Page 2 SMDJ43C Datasheet Preview Page 3

Datasheet Details

Part number:

SMDJ43C

Manufacturer:

Topdiode

File Size:

296.42 KB

Description:

Surface mount tvs.
