TQFP52T25, TQFP44T30 Datasheet - Topline

TQFP52T25 TQFP Drawings Library

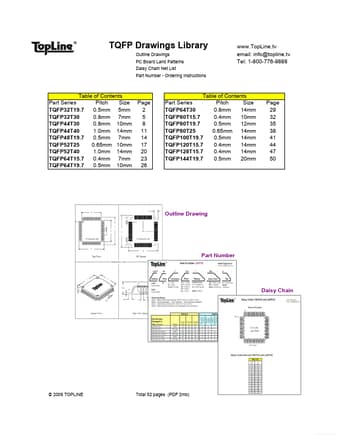

TQFP Drawings Library Outline Drawings PC Board Land Patterns Daisy Chain Net List Part Number - Ordering Instructions www.TopLine.tv email: info@topline.tv Tel: 1-800-776-9888 Table of Contents Part Series Pitch Size Page TQFP32T19.7 0.5mm 5mm 2 TQFP32T30 0.8mm 7mm 5 TQFP44T30 0.8mm 10mm 8 TQFP44T40 1.0mm 14mm 11 TQFP48T19.7 0.5mm 7mm 14 TQFP52T25 0.65mm 10mm 17 TQFP52T40 1.0mm 14mm 20 TQFP64T15.7 0.4mm 7mm 23 TQFP64T19.7 0.5mm 10mm 26 Table of Contents Part Series Pitch Size TQFP64T30 0.8mm.

TQFP44T30-Topline.pdf

This datasheet PDF includes multiple part numbers: TQFP52T25, TQFP44T30. Please refer to the document for exact specifications by model.
TQFP52T25 Datasheet Preview Page 2 TQFP52T25 Datasheet Preview Page 3

Datasheet Details

Part number:

TQFP52T25, TQFP44T30

Manufacturer:

Topline

File Size:

2.01 MB

Description:

Tqfp drawings library.

Note:

This datasheet PDF includes multiple part numbers: TQFP52T25, TQFP44T30.
Please refer to the document for exact specifications by model.
