TMC600A - Current Transducer

Product Overview

Topstek

Part number	TMC600A
Manufacturer	Topstek
File Size	215.12 KB
Description	Current Transducer
Datasheet	TMC600A Datasheet
Note	This datasheet PDF includes multiple part numbers: TMC600A, TMC200A. Please refer to the document for exact specifications by model.

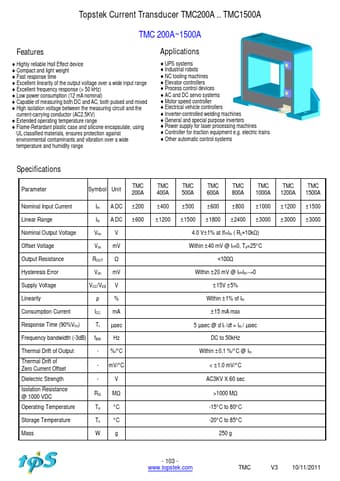

Additional preview pages of the TMC600A datasheet.

Highly reliable Hall Effect device.
Compact and light weight.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (12 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temperature.
