LM24064R

Chinese Character LCD

LM24064R Features

* 240x64 dots, 5.0V single power supply

* Parallel interface

* Built in RA8806 controller, support horizontal and vertical area scrolling, font enlargement TERMINAL FUNCTIONS Pin Name 1 VOUT 2 V0 3 VSS 4 VDD 5 BUSY 6 NC 7 /CS 8 RS 9 /WR 10 /RD 11 DB0 :: 18 DB7 19 /RST 20 NC 21 BLA 22 B

LM24064R General Description

Power Booster Output for V0 LCD Contrast Reference Input 0V Power Supply, GND Positive Power Supply Indicate the RA8806 in busy state or not, Could been used for MPU to get busy state by connecting it to IO port No connection, leave open Chip Select Signal Register Select Write enable input, active.

LM24064R Datasheet (52.45 KB)

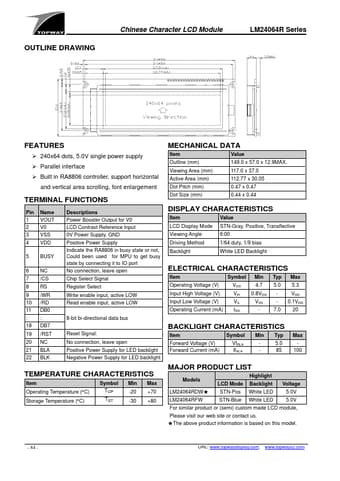

Preview of LM24064R PDF

Datasheet Details

Part number:

LM24064R

Manufacturer:

Topway

File Size:

52.45 KB

Description:

Chinese character lcd.
