XBP1001, TVS Diode

XBP1001 series is Discontinued.XBP1001 Low Capacitance TVS Diode Array *.

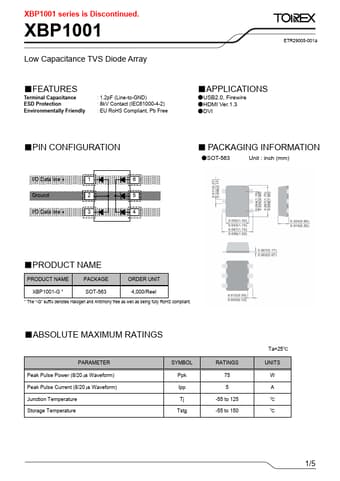

datasheet Preview Page 1 from Datasheet4u.com

XBP1001-TorexSemiconductor.pdf

XBP1001 Datasheet Preview — Preview of XBP1001 PDF

Datasheet Details

Part number:

XBP1001

Manufacturer:

Torex Semiconductor

File Size:

324.73 KB

Description:

TVS Diode

Features

* Terminal Capacitance ESD Protection Environmentally Friendly : 1.2pF (Line-to-GND) : 8kV Contact (IEC61000-4-2) : EU RoHS Compliant, Pb Free ETR29005-001a

Applications

* USB2.0, Firewire
* HDMI Ver.1.3
* DVI
* PIN CONFIGURATION I/O Data line + 1 6 Ground 2 5 I/O Data line + 3 4
* PACKAGING INFORMATION
* SOT-563 Unit : inch (mm)
* PRODUCT NAME PRODUCT NAME PACKAGE ORDER UNIT XBP1001-G
* SOT-563 4,000/Reel
* The “-G
