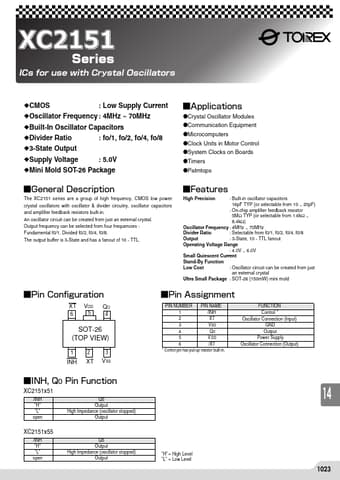

XC2151A52 Datasheet - Torex Semiconductor

XC2151A52 - ICS FOR USE WITH CRYSTAL OSCILLATORS

Supply Voltage : 5 = 5.0V Product Series : 1 = Large output capability, fundamental & overtone Duty Level : A = CMOS (V DD/2) & TTL C = CMOS (VDD/2) T = TTL Output Capability : 5 = 10TTL DESIGNATOR e f DESCRIPTION Stand-by Mode and Divider Ratio : 1=f0/1 (CE), 2=f0/2 (CE), 4=f0/4 (CE), 8=f0/8 (CE

NCMOS : Low Supply Current GCrystal Oscillator Modules GCommunication Equipment GMicrocomputers GClock Units in Motor Control GSystem Clocks on Boards GTimers GPalmtops NOscillator Frequency : 4MHz ~ 70MHz NBuilt-In Oscillator Capacitors NDivider Ratio N3-State Output NSupply Voltage : 5.0V NMini Mold SOT-26 Package : fo/1, fo/2, fo/4, fo/8 The XC2151 series are a group of high frequency, CMOS low power crystal oscillators with oscillator & divider circuitry, oscillator capacitors and amplifi
