XC6190 - Push Button Reboot Controller

Torex Semiconductor

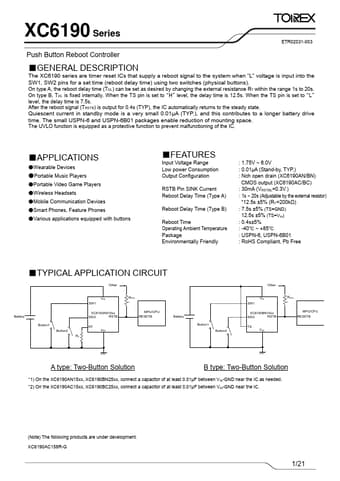

XC6190 Datasheet Preview — Preview of XC6190 PDF

Datasheet Details

Part number	XC6190
Manufacturer	Torex Semiconductor
File Size	465.31 KB
Description	Push Button Reboot Controller
Datasheet	XC6190-TorexSemiconductor.pdf

XC6190 Product details

Description

The XC6190 series are timer reset ICs that supply a reboot signal to the system when “L” voltage is input into the SW1, SW2 pins for a set time (reboot delay time) using two switches (physical buttons).

Features

e Range Low power Consumption Output Configuration RSTB Pin SINK Current Reboot Delay Time (Type A) Reboot Delay Time (Type B) Reboot Time Operating Ambient Temperature Package Environmentally Friendly : 1.75V ~ 6.0V : 0.01μA (Stand-by, TYP. ) : Nch open drain (XC6190AN/BN) CMOS output (XC6190AC/BC) : 30mA (VRSTBL=0.3V. ) : 1s ~ 20s (Adjustable by the external resistor).
12.5s ±5% (RT=200kΩ) : 7.5s ±5% (TS=GND) 12.5s ±5% (TS=VIN) : 0.4s±5% : -40℃ ~ +85℃ : USPN-6, USPN-6B01 : RoHS Compliant, P.
