XC74UHU04WM Datasheet - Torex Semiconductor

XC74UHU04WM - CMOS Logic

NCMOS Dual Inverter NUnbuffered Type NHigh Speed Operation : tpd=12ns TYP NOperating Voltage Range : 2V~6V NLow Power Consumption : 1µA (max) GCrystal Oscillators GPalmtops GDigital Equipment The XC74UHU04WM is a CMOS Dual Inverter, manufactured using silicon gate CMOS fabrication.

CMOS low power circuit operation makes high speed LS-TTL operations achievable.

The internal unbuffered, single-step composition makes the XC74UHU04WM suitable for use with crystal oscillators.

As the XC74UHU04WM is

XC74UHU04WM_TorexSemiconductor.pdf

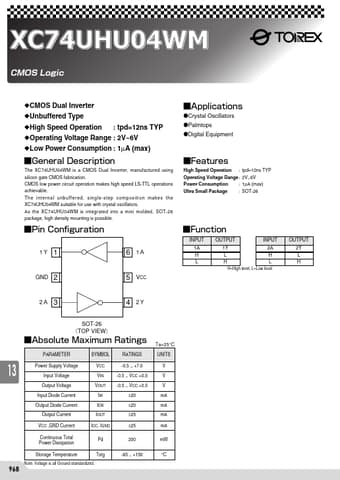

Preview of XC74UHU04WM PDF
XC74UHU04WM Datasheet Preview Page 2 XC74UHU04WM Datasheet Preview Page 3

Datasheet Details

Part number:

XC74UHU04WM

Manufacturer:

Torex Semiconductor

File Size:

94.34 KB

Description:

Cmos logic.
