ET1183 Datasheet - Torquemeters

ET1183 Medium Speed Torquemeter

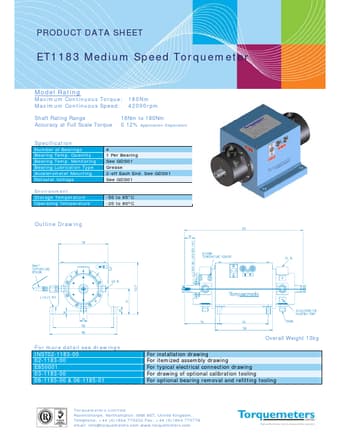

PRODUCT DATA SHEET ET1183 Medium Speed Torquemeter Model Rating Maximum Continuous Torque: 180Nm Maximum Continuous Speed: 42000rpm Shaft Rating Range 16Nm to 180Nm Accuracy at Full Scale Torque 0.12% Application Dependant Specification Number of Bearings Bearing Temp. Quantity Bearing Temp. Monitoring Bearing Lubrication Type Accelerometer Mounting Rotastat Voltage Environment Storage Temperature Operating Temperature 4 1 Per Bearing See GDS01 Grease 2-off Each End. See GDS01 See GDS01 -5.

ET1183 Datasheet (167.58 KB)
