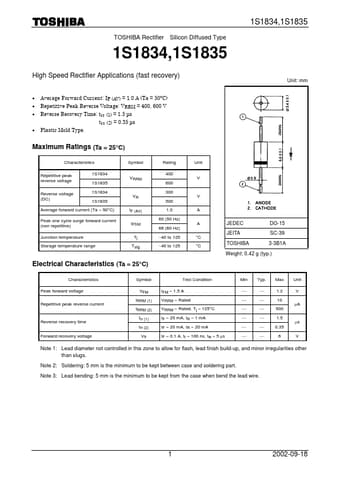

Datasheet preview – 1S1834

📁 Similar Datasheet

  • 1S1834 - (1S1834 / 1S1835) FAST RECOVERY RECTIFIER (BL)
  • 1S1834 - FAST RECOVERY RECTIFIER DIODES (SUNMATE)
  • 1S1834Z - (1S1834Z / 1S1835Z) FAST RECOVERY RECTIFIER (BL)
  • 1S1830 - AXIAL LEADED SILICON RECTIFIER DIODES (SUNMATE)
  • 1S1830 - Silicon Diffused Type Rectifier (Toshiba)
  • 1S1835 - (1S1834 / 1S1835) FAST RECOVERY RECTIFIER (BL)
  • 1S1835 - FAST RECOVERY RECTIFIER DIODES (SUNMATE)
  • 1S1835Z - FAST RECOVERY RECTIFIER (BL)
  • 1S1829 - AXIAL LEADED SILICON RECTIFIER DIODES (SUNMATE)
  • 1S1885 - SILICON RECTIFIER DIODES (EIC)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
TOSHIBA Rectifier Silicon Diffused Type 1S1834,1S1835 1S1834,1S1835 High Speed Rectifier Applications (fast recovery) Unit: mm · Average Forward Current: IF (AV) = 1.0 A (Ta = 50°C) · Repetitive Peak Reverse Voltage: VRRM = 400, 600 V · Reverse Recovery Time: trr (1) = 1.5 µs trr (2) = 0.35 µs · Plastic Mold Type. Maximum Ratings (Ta = 25°C) Characteristics Repetitive peak reverse voltage 1S1834 1S1835 Reverse voltage (DC) 1S1834 1S1835 Average forward current (Ta = 50°C) Peak one cycle surge forward current (non repetitive) Junction temperature Storage temperature range Symbol VRRM VR IF (AV) IFSM Tj Tstg Rating 400 600 300 500 1.
