1SS226 - Switching Diodes

1SS226 Description

Switching Diodes Silicon Epitaxial Planar 1SS226 1.Applications * Ultra-High-Speed Switching 2..

1SS226 Features

* (1) AEC-Q101 qualified (Note 1) Note 1: For detail information, please contact our sales. 3. Packaging and Internal Circuit S-Mini 1SS226 1: Anode 1 2: Cathode 2 3: Cathode1 / Anode 2 ©2017-2022 1 Toshiba Electronic Devices & Storage Corporation Start of commercial production 1982-09 2022-11-22

📥 Download Datasheet

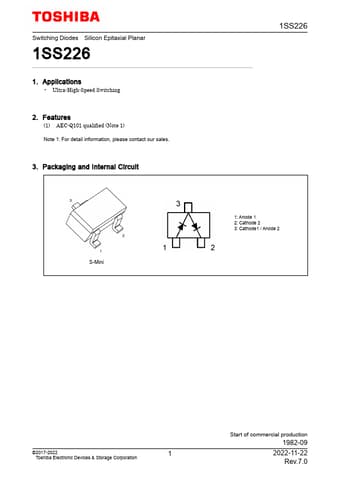

Preview of 1SS226 PDF
datasheet Preview Page 2 datasheet Preview Page 3
