1SV282 - Variable Capacitance Diode

📥 Download Datasheet

Datasheet preview – 1SV282

📁 Similar Datasheet

  • 1SV233 - PIN Diode (Sanyo Semicon Device)
  • 1SV233 - Single PIN Diode (ON Semiconductor)
  • 1SV234 - PIN Diode (Sanyo Semicon Device)
  • 1SV241 - PIN Diode (Sanyo Semicon Device)
  • 1SV246 - PIN Diode (Sanyo Semicon Device)
  • 1SV247 - PIN Diode (Sanyo Semicon Device)
  • 1SV248 - PIN Diode (Sanyo Semicon Device)
  • 1SV249 - PIN Diode (Sanyo Semicon Device)
  • 1SV250 - PIN Diode (Sanyo Semicon Device)
  • 1SV251 - PIN Diode (Sanyo Semicon Device)
Other Datasheets by Toshiba Semiconductor
  • 1SV280 - Variable Capacitance Diode
  • 1SV281 - VARIABLE CAACITANCE DIODE
  • 1SV283 - VARIABLE CAPCCITANCE DIODE
  • 1SV284 - Variable Capacitance Diode
  • 1SV285 - Variable Capacitance Diode
  • 1SV286 - Variable Capacitance Diode
  • 1SV287 - Variable Capacitance Diode
  • 1SV288 - Variable Capacitance Diode

Full PDF Text Transcription

Click to expand full text

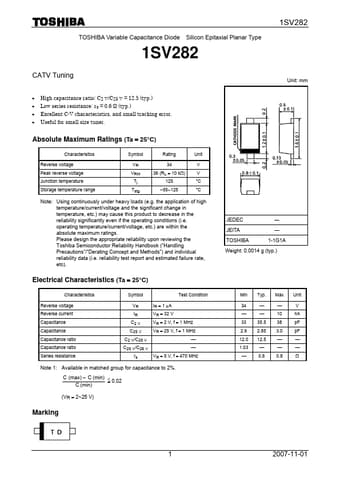

TOSHIBA Variable Capacitance Diode Silicon Epitaxial Planar Type 1SV282 1SV282 CATV Tuning • High capacitance ratio: C2 V/C25 V = 12.5 (typ.) • Low series resistance: rs = 0.6 Ω (typ.) • Excellent C-V characteristics, and small tracking error. • Useful for small size tuner. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Reverse voltage Peak reverse voltage Junction temperature Storage temperature range VR VRM Tj Tstg 34 36 (RL = 10 kΩ) 125 −55~125 V V °C °C Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.
