2SC752TM, 2SC752 Datasheet - Toshiba Semiconductor

2SC752TM Silicon NPN Epitaxial Type Transistor

2SC752(G)TM TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC752(G)TM Ultra High Speed Switching Applications Computer, Counter Applications Unit: mm High transition frequency: fT = 400 MHz (typ.) Low saturation voltage: VCE (sat) = 0.3 V (max) High speed switching time: tstg = 15 ns (typ.) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipatio.

2SC752_ToshibaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 2SC752TM, 2SC752. Please refer to the document for exact specifications by model.

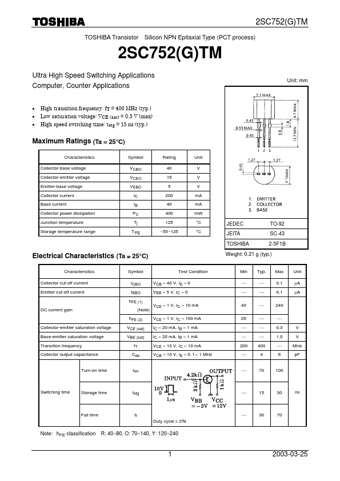

2SC752TM Datasheet Preview Page 2 2SC752TM Datasheet Preview Page 3

Datasheet Details

Part number:

2SC752TM, 2SC752

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

176.58 KB

Description:

Silicon npn epitaxial type transistor.

Note:

This datasheet PDF includes multiple part numbers: 2SC752TM, 2SC752.
Please refer to the document for exact specifications by model.
