2SK2401 Datasheet - Toshiba Semiconductor

2SK2401 Silicon N-Channel MOSFET

2SK2401 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2401 Chopper Regulator, DC DC Converter and Motor Drive Applications z Low drain source ON resistance : RDS (ON) = 0.13 Ω (typ.) z High forward transfer admittance : |Yfs| = 17 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 200 V) z Enhancement mode : Vth = 1.5~3.5 V (VDS = 10 V, ID = 1 mA) Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit.

2SK2401_ToshibaSemiconductor.pdf

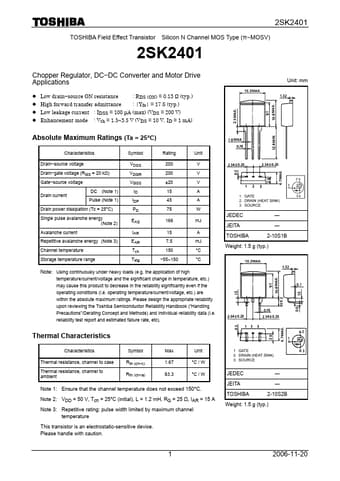

Preview of 2SK2401 PDF
2SK2401 Datasheet Preview Page 2 2SK2401 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2401

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

765.44 KB

Description:

Silicon n-channel mosfet.
