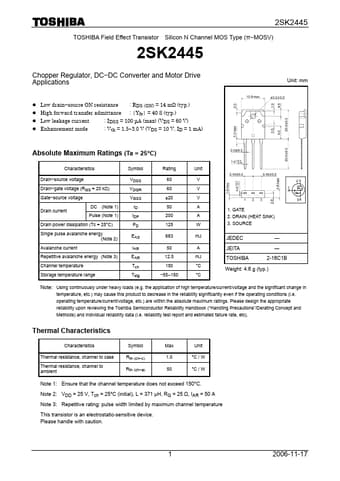

2SK2445
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π- MOSV)
Chopper Regulator, DC- DC Converter and Motor Drive Applications
Unit: mm z Low drain- source ON resistance : RDS (ON) = 14 mΩ (typ.) z High forward transfer admittance : |Yfs| = 40 S (typ.) z Low leakage current
: IDSS = 100 μA (max) (VDS = 60 V) z Enhancement mode
: Vth = 1.5~3.0 V (VDS = 10 V, ID = 1 m A)
Absolute Maximum Ratings (Ta = 25°C)
Characteristics
Symbol
Rating
Unit
Drain- source voltage
Drain- gate voltage (RGS = 20 kΩ) Gate- source voltage
Drain current
DC (Note 1) Pulse (Note 1)
Drain power dissipation (Tc = 25°C)
Single pulse avalanche energy (Note 2)
Avalanche current
Repetitive avalanche energy (Note 3)
Channel temperature
Storage temperature range
VDSS VDGR VGSS
ID IDP PD
IAR EAR Tch Tstg
60 60 ±20 50 200 125
50 12.5 150
- 55~150
V V V A A W m J
A m J °C °C
1. GATE 2. DRAIN (HEAT SINK) 3. SOURCE
JEDEC
―
JEITA
―
TOSHIBA
2-16C1B
Weight: 4.6 g...
