2SK2914 Datasheet - Toshiba Semiconductor

2SK2914 Silicon N Channel MOS Type Field Effect Transistor

2SK2914 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2914 Chopper Regulator, DC DC Converter and Moter Drive Applications Unit: mm z Low drain source ON resistance : RDS (ON) = 0.42 Ω (typ.) z High forward transfer admittance : |Yfs| = 7.5 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 250 V) z Enhancement mode : Vth = 1.5~3.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Un.

2SK2914_ToshibaSemiconductor.pdf

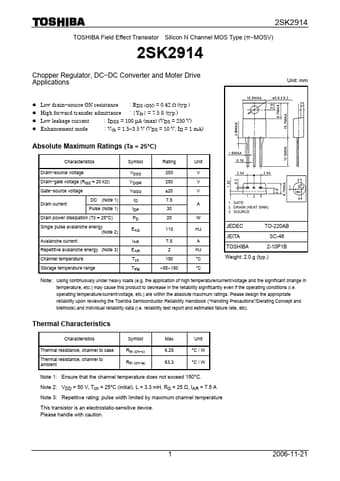

Preview of 2SK2914 PDF
2SK2914 Datasheet Preview Page 2 2SK2914 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2914

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

656.45 KB

Description:

Silicon n channel mos type field effect transistor.
