3SK249 - N-CHANNEL DUAL GATE MOS TYPE TRANSISTOR

Toshiba

Datasheet Details

Part number	3SK249
Manufacturer	Toshiba
File Size	676.79 KB
Description	N-CHANNEL DUAL GATE MOS TYPE TRANSISTOR
Datasheet	3SK249 Datasheet

Other Datasheets by Toshiba

Part Number	Description
3SK240	GaAs N-Channel Dual Gate MES Type FET
3SK207	Silicon N Channel Dual Gate MOS Type FET
3SK225	Silicon N Channel Dual Gate MOS Type FET
3SK226	Silicon N Channel Dual Gate MOS Type FET
3SK256	Silicon N Channel Dual Gate MOS Type FET
3SK257	Silicon N Channel Dual Gate MOS Type FET
3SK258	Silicon N Channel Dual Gate MOS Type FET
3SK259	Silicon N Channel Dual Gate MOS Type FET
3SK260	Silicon N Channel Dual Gate MOS Type FET
3SK274	N CHANNEL DUAL GATE MES TYPE (TV TUNER/ UHF RF AMPLIFIER APPLICATIONS)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

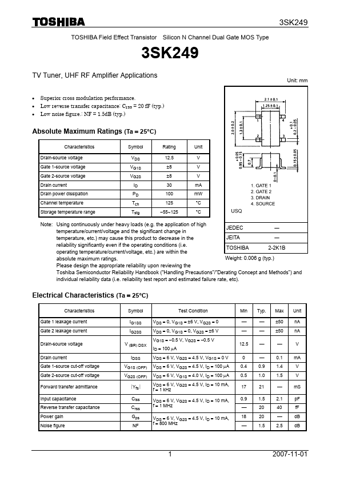

TOSHIBA Field Effect Transistor Silicon N Channel Dual Gate MOS Type 3SK249 3SK249 TV Tuner, UHF RF Amplifier Applications Unit: mm • Superior cross modulation performance. • Low reverse transfer capacitance: Crss = 20 fF (typ.) • Low noise figure.: NF = 1.5dB (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Drain-source voltage Gate 1-source voltage Gate 2-source voltage Drain current Drain power dissipation Channel temperature Storage temperature range VDS VG1S VG2S ID PD Tch Tstg 12.5 ±8 ±8 30 100 125 −55~125 V V V mA mW °C °C Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in JEDEC ― temperature, etc.
