A1163 Datasheet - Toshiba Semiconductor

A1163 2SA1163

2SA1163 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1163 Audio Frequency General Purpose Amplifier Applications High voltage: VCEO = 120 V Excellent hFE linearity: hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ.) High hFE: hFE = 200 to 700 Low noise: NF = 1dB (typ.), 10dB (max) Complementary to 2SC2713 Small package Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol R.

A1163-ToshibaSemiconductor.pdf

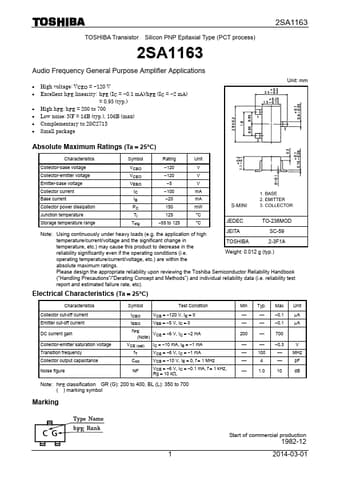

Preview of A1163 PDF
A1163 Datasheet Preview Page 2 A1163 Datasheet Preview Page 3

Datasheet Details

Part number:

A1163

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

303.70 KB

Description:

2sa1163.
