A1357 Datasheet - Toshiba Semiconductor

A1357 2SA1357

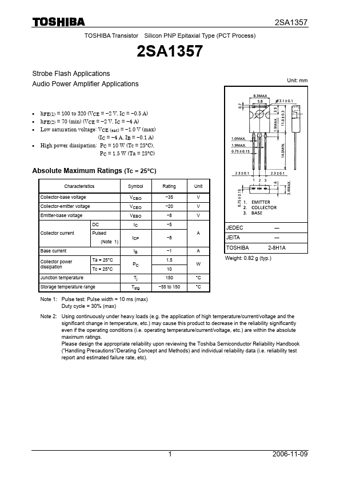

www.DataSheet.co.kr 2SA1357 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA1357 Strobe Flash Applications Audio Power Amplifier Applications Unit: mm hFE(1) = 100 to 320 (VCE = 2 V, IC = 0.5 A) hFE(2) = 70 (min) (VCE = 2 V, IC = 4 A) Low saturation voltage: VCE (sat) = 1.0 V (max) (IC = 4 A, IB = 0.1 A) High power dissipation: PC = 10 W (Tc = 25°C), PC = 1.5 W (Ta = 25°C) A.

A1357_ToshibaSemiconductor.pdf

Preview of A1357 PDF
A1357 Datasheet Preview Page 2 A1357 Datasheet Preview Page 3

Datasheet Details

Part number:

A1357

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

196.62 KB

Description:

2sa1357.
