Description

2SA1832 TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1832 Audio Frequency General Purpose Amplifier Applications High voltage and h.

📥 Download Datasheet

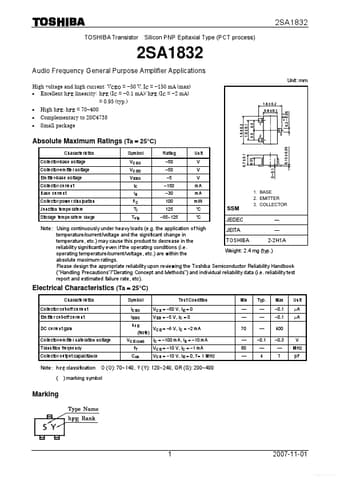

Preview of A1832 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* High voltage and high current: VCEO =
* 50 V, IC =
* 150 mA (max)
* Excellent hFE linearity: hFE (IC =
* 0.1 mA)/ hFE (IC =
* 2 mA) = 0.95 (typ. )
* High hFE: hFE = 70~400 Complementary to 2SC4738 Small package Unit: mm Absolute Maximum
