C2235 - 2SC2235

C2235 Description

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC2235 Audio Power Amplifier Applications Driver Stage Amplifier Applications 2SC2235 Un.

C2235 Applications

* Driver Stage Amplifier Applications 2SC2235 Unit: mm
* Complementary to 2SA965. Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 120 V Collector-emitter voltage VCEO 120 V Emitter-base voltage VEBO 5 V Collector current

📥 Download Datasheet

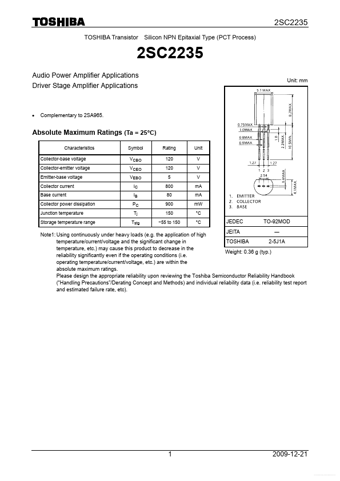

Preview of C2235 PDF
datasheet Preview Page 2 datasheet Preview Page 3
