RN4903 - Silicon PNP/NPN Transistor

Datasheet Summary

Features

  • (1) AEC-Q101 qualified (Please see the orderable part number list) (2) Including two devices in US6 (ultra super mini type with 6 leads) (3) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. 3. Equivalent Circuit 4. Packaging and Pin Assignment 1: Emitter1 2: Base1 3: Collector2 4: Emitter2 5: Base2 6: Collector1 US6 5. Orderable part number Orderable part number AEC-Q101 Note RN4903,LF RN4903,LXGF RN49.

📥 Download Datasheet

Datasheet preview – RN4903

Datasheet Details

Part number RN4903
Manufacturer Toshiba Semiconductor
File Size 403.88 KB
Description Silicon PNP/NPN Transistor
Datasheet download datasheet RN4903 Datasheet
Additional preview pages of the RN4903 datasheet.

📁 Similar Datasheet

  • RN4903FE - Silicon PNP/NPN Transistor (Toshiba)
  • RN4901 - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4901FE - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4902 - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4902FE - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4904 - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4904FE - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4905 - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4905FE - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
  • RN4906 - Silicon PNP/NPN Epitaxial Type Transistors (Toshiba)
Other Datasheets by Toshiba Semiconductor
  • RN49A1 - Silicon PNP/NPN Transistor
  • RN4603 - Silicon NPN/PNP Epitaxial Type Transistor
  • RN4610 - Silicon NPN/PNP Epitaxial Type Transistor
  • RN4612 - Silicon NPN/PNP Epitaxial Type Transistor
  • RN47A4 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

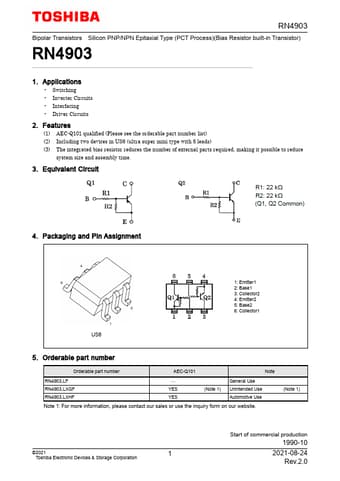

RN4903 Bipolar Transistors Silicon PNP/NPN Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN4903 1. Applications • Switching • Inverter Circuits • Interfacing • Driver Circuits 2. Features (1) AEC-Q101 qualified (Please see the orderable part number list) (2) Including two devices in US6 (ultra super mini type with 6 leads) (3) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. 3. Equivalent Circuit 4. Packaging and Pin Assignment 1: Emitter1 2: Base1 3: Collector2 4: Emitter2 5: Base2 6: Collector1 US6 5.
