S-AV10H VHF RF Power Amplifier Module

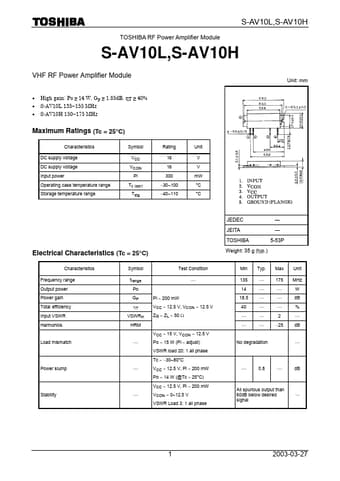

S-AV10L,S-AV10H TOSHIBA RF Power Amplifier Module S-AV10L,S-AV10H VHF RF Power Amplifier Module High gain: Po ≥ 14 W, Gp ≥ 1.85dB, ηT ≥ 40% S-AV10L 135~155 MHz S-AV10H 150~175 MHz Unit: mm Maximum Ratings (Tc = 25°C) Characteristics DC supply voltage DC supply voltage Input power Operating case temperature range Storage temperature range Symbol VCC VCON Pi Tc (opr) Tstg Rating 16 16 300 -30~100 -40~110 Unit V V mW °C °C JEDEC JEITA TOSHIBA ― ― 5-53P Electrical Characterist.

SAV-10H.pdf

This datasheet PDF includes multiple part numbers: S-AV10H, SAV. Please refer to the document for exact specifications by model.
S-AV10H Datasheet Preview Page 2 S-AV10H Datasheet Preview Page 3

Datasheet Details

Part number:

S-AV10H, SAV

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

134.46 KB

Description:

Vhf rf power amplifier module.

Note:

This datasheet PDF includes multiple part numbers: S-AV10H, SAV.
Please refer to the document for exact specifications by model.
