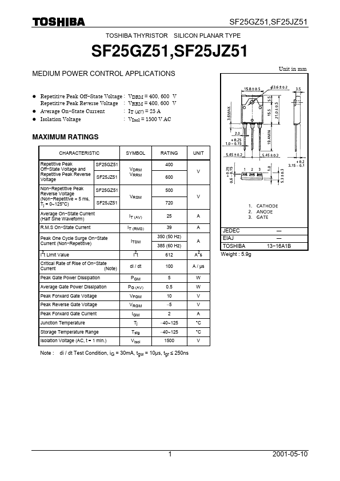

SF25GZ51
SF25GZ51,SF25JZ51
TOSHIBA THYRISTOR SILICON PLANAR TYPE
SF25GZ51,SF25JZ51
MEDIUM POWER CONTROL APPLICATIONS l Repetitive Peak Off- State Voltage : VDRM = 400, 600 V Repetitive Peak Reverse Voltage : VRRM = 400, 600 V l Average On- State Current l Isolation Voltage : IT (AV) = 25 A : VIsol = 1500 V AC Unit in mm
MAXIMUM RATINGS
CHARACTERISTIC Repetitive Peak Off- State Voltage and Repetitive Peak Reverse Voltage Non- Repetitive Peak Reverse Voltage (Non- Repetitive < 5 ms, Tj = 0~125°C) Average On- State Current (Half Sine Waveform) R.M.S On- State Current Peak One Cycle Surge On- State Current (Non- Repetitive) I t Limit Value Critical Rate of Rise of On- State Current (Note) Peak Gate Power Dissipation Average Gate Power Dissipation Peak Forward Gate Voltage Peak Reverse Gate Voltage Peak Forward Gate Current Junction Temperature Storage Temperature Range Isolation Voltage (AC, t = 1 min.)
SYMBOL VDRM VRRM
RATING 400
UNIT
SF25GZ51 SF25JZ51 SF25GZ51
V 600 500
VRSM SF25JZ51 IT (AV) IT...
