TA7331F - LOW QUIESCENT CURRENT AUDIO POWER AMPLIFIER

This page provides the datasheet information for the TA7331F, a member of the TA7331 LOW QUIESCENT CURRENT AUDIO POWER AMPLIFIER family.

Datasheet Summary

Features

  • Operating supply voltage range : VCC (opr) = 2~5V TA7331P (Ta = 25°C) VCC (opr) = 2~4V TA7331F (Ta = 25°C).
  • Low quiescent current: ICCQ = 3mA (typ. ) (VCC = 3V, Ta = 25°C).
  • TA7331F (SO) is standard model of flat package Weight SIP9.
  • P.
  • 2.54A: 0.92g (typ. ) SSOP16.
  • P.
  • 225.
  • 1.00: 0.14g (typ. ) Output Power Table (f = 1kHz, THD = 10%, Ta = 25°C) Condition VCC = 3V VCC = 4.5V Package RL = 8Ω RL = 4Ω RL = 8Ω BTL RL = 8Ω RL = 4Ω TA7331P 120mW 200mW.

📥 Download Datasheet

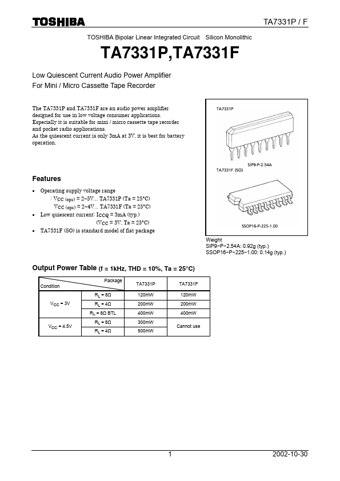

Datasheet preview – TA7331F
