TA8851CNG AUDIO / VIDEO SWITCH

TA8851BNG,TA8851CNG TOSHIBA BIPOLAR LINEAR INTEGRATED CIRCUIT SILICON MONOLITHIC TA8851BNG,TA8851CNG AUDIO / VIDEO SWITCH IC FOR TV WITH S-TERMINALS The TA8851BNG / CNG is an A / V SWITCH IC, which has 7 input channels and 2 output channels. Because the 2 output channels can be switched independently of each other, the TA8851BNG / CNG allows you to configure a PIP system input switching circuit easily. The TA8851BNG / CNG can be interfaced easily to a microcontroller via the I2C bus. 3 of 7 inp.

TA8851CNG Features

* Video Stage www.DataSheet4U.com

* Input Composite video input Y / C input

* Output Composite video output : Y / C output Audio Stage

* Input L / R input

* Output L / R output Functions

* I2C bus interface

* External mute circuit

* DAC output (3

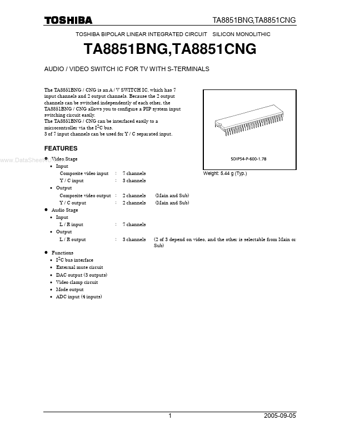

TA8851BNG_ToshibaSemiconductor.pdf

TA8851CNG Datasheet Preview — This datasheet PDF includes multiple part numbers: TA8851CNG, TA8851BNG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TA8851CNG, TA8851BNG

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

1.32 MB

Description:

Audio / video switch.

Note:

This datasheet PDF includes multiple part numbers: TA8851CNG, TA8851BNG.
Please refer to the document for exact specifications by model.
