TD74BC541F Octal Bus Buffer

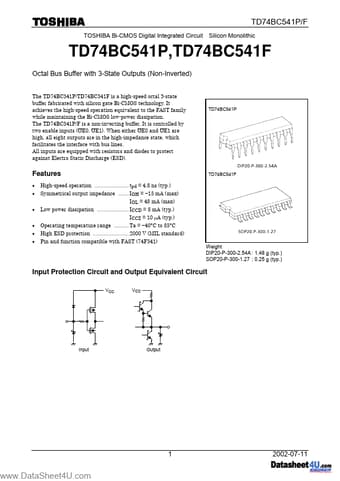

( DataSheet : www.DataSheet4U.com ) TD74BC541P/F TOSHIBA Bi-CMOS Digital Integrated Circuit Silicon Monolithic TD74BC541P,TD74BC541F Octal Bus Buffer with 3-State Outputs (Non-Inverted) The TD74BC541P/TD74BC541F is a high-speed octal 3-state buffer fabricated with silicon gate Bi-CMOS technology. It achieves the high-speed operation equivalent to the FAST family while maintaining the Bi-CMOS low-power dissipation. The TD74BC541P/F is a non-inverting buffer. It is controlled by two enable input.

TD74BC541F Features

* High-speed operation tpd = 4.8 ns (typ.)

* Symmetrical output impedance IOH =

* 15 mA (max) IOL = 48 mA (max)

* Low power dissipation ICCD = 8 mA (typ.) ICCZ = 10 mA (typ.)

* Operating temperature range Ta =

* 40°C to 85°C

* High ESD protection 2000 V (MIL st
