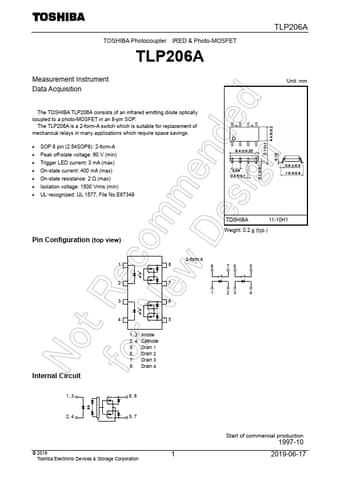

TLP206A
TLP206A is Photocoupler manufactured by Toshiba.
TOSHIBA Photocoupler IRED & Photo-MOSFET
Measurement Instrument Data Acquisition
The TOSHIBA TLP206A consists of an infrared emitting diode optically coupled to a photo-MOSFET in an 8-pin SOP.
The TLP206A is a 2-form-A switch which is suitable for replacement of mechanical relays in many applications which require space savings.
- SOP 8 pin (2.54SOP8): 2-form-A
- Peak off-state voltage: 60 V (min)
- Trigger LED current: 3 m A (max)
- On-state current: 400 m A (max)
- On-state resistance: 2 Ω (max)
- Isolation voltage: 1500 Vrms (min)
- UL-recognized: UL 1577, File No.E67349
Unit: mm
Pin Configuration (top view)
TOSHIBA
11-10H1
Weight: 0.2 g (typ.)
Internal Circuit
2-form A
1, 3: Anode 2, 4: Cathode 5: Drain 1 6: Drain 2 7: Drain 3 8: Drain 4
1, 3
6, 8
2, 4
5, 7
© 2019
