TLP801A Datasheet - Toshiba Semiconductor

TLP801A Photo-Interrupter

www.DataSheet4U.com TLP801A(F) TOSHIBA Photo Interrupter Infrared LED+Phototransistor TLP801A(F) Lead Free Product Optical Switches Position And Rotation Detection Timing Detection In Copiers, Printers, Fax Machines, Etc. The TLP801A(F) photo interrupter can be used for high-speed position detection. Gap: 3mm Resolution: Slit width = 1mm Fast response speed: tr, tf = 6µs(typ.) High current transfer ratio: IC / IF = .

TLP801A_ToshibaSemiconductor.pdf

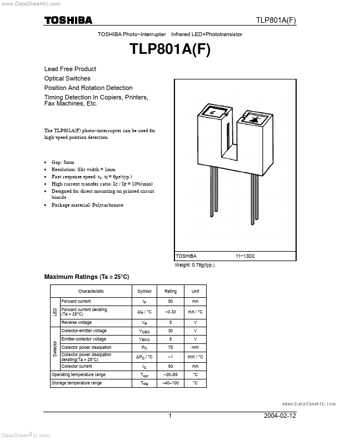

Preview of TLP801A PDF
TLP801A Datasheet Preview Page 2 TLP801A Datasheet Preview Page 3

Datasheet Details

Part number:

TLP801A

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

393.13 KB

Description:

Photo-interrupter.
