TMP93PW40DF Datasheet - Toshiba Semiconductor

TMP93PW40DF CMOS 16-Bit Microcontroller

TMP93PW40 Low Voltage/Low Power CMOS 16-Bit Microcontrollers TMP93PW40DF 1. Outline and Device Characteristics The TMP93PW40 is OTP type MCU which includes 128-Kbyte One-time PROM. Using the adapter-socket, you can write and verify the data for TMP93PW40.TMP93PW40 has the same pin-assignment with TMP93CW40 (Mask ROM type) . Writing the program to built-in PROM, the TMP93PW40 operates as the same way with TMP93CW40. 000000H Internal I/O 000080H 001080H Internal RAM External area 008.

TMP93PW40DF Datasheet (293.00 KB)

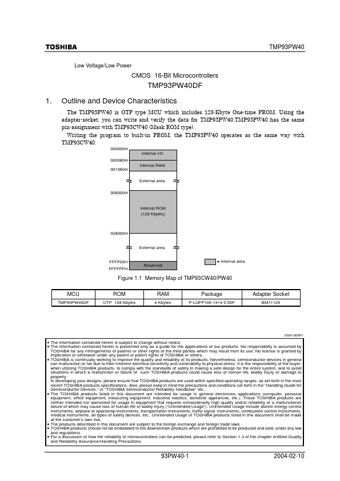

Preview of TMP93PW40DF PDF
TMP93PW40DF Datasheet Preview Page 2 TMP93PW40DF Datasheet Preview Page 3

Datasheet Details

Part number:

TMP93PW40DF

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

293.00 KB

Description:

Cmos 16-bit microcontroller.
