TORX173 - FIBER OPTIC RECEIVING MODULE

Features

  • ssumed by.

📥 Download Datasheet

Datasheet preview – TORX173

📁 Similar Datasheet

  • TORX179 - FIBER OPTIC RECEIVING MODULE (Toshiba)
  • TORX179P - FIBER OPTIC RECEIVING MODULE (Toshiba)
  • TORX1350A - FIBER OPTIC RECEIVER (Toshiba)
  • TORX141 - FIBER OPTIC RECEIVING MODULE (Toshiba)
  • TORX1500 - FIBER OPTIC TRANSMITTING MODULE (Toshiba)
  • TORX198 - FIBER OPTIC TRANSMITTING MODULE (Toshiba)
Other Datasheets by Toshiba Semiconductor
  • TORX170 - FIBER OPTIC RECEIVING MODULE
  • TORX176 - FIBER OPTIC RECEIVING MODULE FOR DIGITAL AUDIO EQUIPMENT
  • TORX177 - FIBER OPTIC RECEIVING MODULE
  • TORX178B - FIBER OPTIC RECEIVING MODULE
  • TORX178S - FIBER OPTIC RECEIVING MODULE
  • TORX179PL - FIBER OPTIC RECEIVING MODULE
  • TORX100 - FIBER OPTIC RECEIVING MODULE
  • TORX111 - FIBER OPTIC RECEIVING MODULE

Full PDF Text Transcription

Click to expand full text

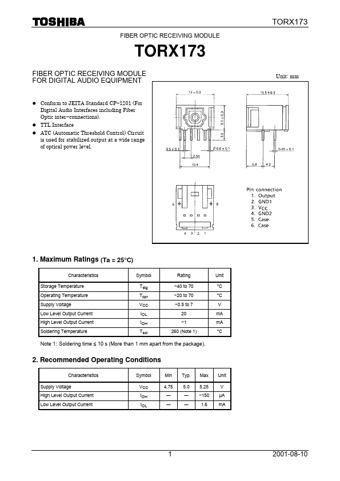

TORX173 FIBER OPTIC RECEIVING MODULE TORX173 FIBER OPTIC RECEIVING MODULE FOR DIGITAL AUDIO EQUIPMENT l Conform to JEITA Standard CP−1201 (For Digital Audio Interfaces including Fiber Optic inter−connections). l TTL Interface l ATC (Automatic Threshold Control) Circuit is used for stabilized output at a wide range of optical power level. Unit: mm 1. Maximum Ratings (Ta = 25°C) Characteristics Storage Temperature Operating Temperature Supply Voltage Low Level Output Current High Level Output Current Soldering Temperature Symbol Tstg Topr VCC IOL IOH Tsol Rating −40 to 70 −20 to 70 −0.5 to 7 20 −1 260 (Note 1) Unit °C °C V mA mA °C Note 1: Soldering time ≤ 10 s (More than 1 mm apart from the package). 2.
