U1ZB270 CONSTANT VOLTAGE REGULATION TRANSIENT SUPPRESSORS

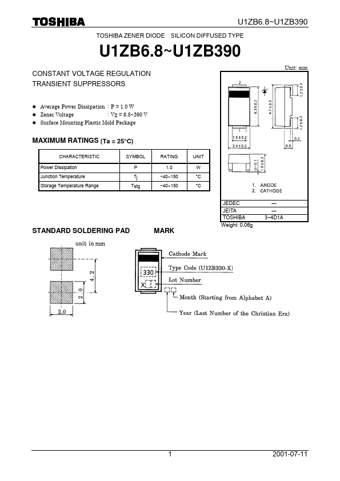

U1ZB6.8~U1ZB390 TOSHIBA ZENER DIODE SILICON DIFFUSED TYPE U1ZB6.8~U1ZB390 CONSTANT VOLTAGE REGULATION TRANSIENT SUPPRESSORS l Average Power Dissipation : P = 1.0 W l Zener Voltage : VZ = 6.8~390 V l Surface Mounting Plastic Mold Package Unit: mm MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC Power Dissipation Junction Temperature Storage Temperature Range SYMBOL P Tj Tstg RATING 1.0 40~150 40~150 UNIT W °C °C JEDEC JEITA TOSHIBA Weight: 0.06g ― ― 3 4D1A STANDARD SOLDER.
