U1ZB30 Datasheet - Toshiba Semiconductor

U1ZB30 CONSTANT VOLTAGE REGULATION TRANSIENT SUPPRESSORS

U1ZB6.8~U1ZB390 TOSHIBA ZENER DIODE SILICON DIFFUSED TYPE U1ZB6.8~U1ZB390 CONSTANT VOLTAGE REGULATION TRANSIENT SUPPRESSORS l Average Power Dissipation : P = 1.0 W l Zener Voltage : VZ = 6.8~390 V l Surface Mounting Plastic Mold Package Unit: mm MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC Power Dissipation Junction Temperature Storage Temperature Range SYMBOL P Tj Tstg RATING 1.0 40~150 40~150 UNIT W °C °C JEDEC JEITA TOSHIBA Weight: 0.06g ― ― 3 4D1A STANDARD SOLDER.

U1ZB30 Datasheet (130.20 KB)

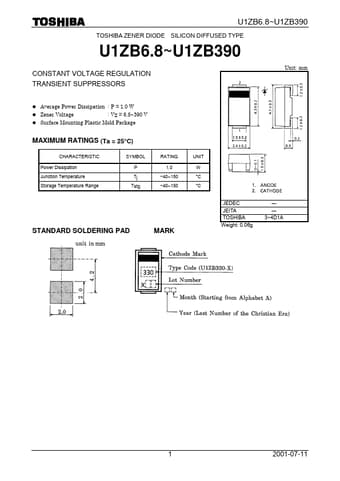

Preview of U1ZB30 PDF
U1ZB30 Datasheet Preview Page 2 U1ZB30 Datasheet Preview Page 3

Datasheet Details

Part number:

U1ZB30

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

130.20 KB

Description:

Constant voltage regulation transient suppressors.
