ULN2004AFWG - 7ch Darlington Sink Driver

This page provides the datasheet information for the ULN2004AFWG, a member of the ULN2003APG 7ch Darlington Sink Driver family.

Features

  • z Output current (single output): 500 mA max z High sustaining voltage output: 50 V min z Output clamp diodes z Inputs compatible with various types of logic z Package Type-APG: DIP-16pin z Package Type-AFWG: SOL-16pin ULN2003APG ULN2004APG ULN2003AFWG ULN2004AFWG Type ULN2003APG/AFWG ULN2004APG/AFWG Input Base Resistor 2.7 kΩ 10.5 kΩ Designation TTL, 5 V CMOS 6 to 15 V PMOS, CMOS Weight DIP16.
  • P-300-2.54A : 1.11 g (typ. ) SOL16.
  • P-150-1.27A: 0.15 g (typ. ) Pin Connection (top.

📥 Download Datasheet

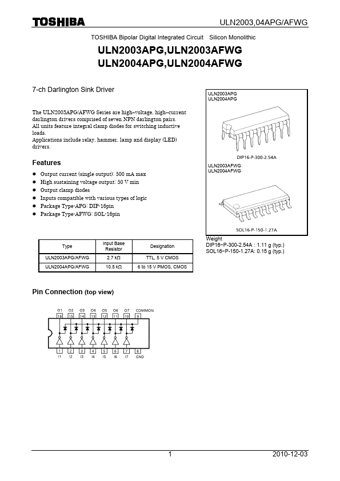

Datasheet preview – ULN2004AFWG

📁 Similar Datasheet

  • ULN2004A - High-Current Darlington Transistor Arrays (Texas Instruments)
  • ULN2004A - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
  • ULN2004A - HIGH-VOLTAGE/ HIGH-CURRENT DARLINGTON ARRAYS (Allegro MicroSystems)
  • ULN2004A - 7CH DARLINGTON SINK DRIVER (ART CHIP)
  • ULN2004A - DARLINGTON TRANSISTOR ARRAYS (Diodes)
  • ULN2004A - HIGH-CURRENT DARLINGTON ARRAYS (Sprague)
  • ULN2004AD - 7CH DARLINGTON SINK DRIVER (ART CHIP)
  • ULN2004AD - 7-Digit Darlington Current Driver (HTC)
  • ULN2004AI - HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAY (Texas Instruments)
  • ULN2004AID - HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAY (Texas Instruments)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
ULN2003,04APG/AFWG TOSHIBA Bipolar Digital Integrated Circuit Silicon Monolithic ULN2003APG,ULN2003AFWG ULN2004APG,ULN2004AFWG 7-ch Darlington Sink Driver The ULN2003APG/AFWG Series are high−voltage, high−current darlington drivers comprised of seven NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers. Features z Output current (single output): 500 mA max z High sustaining voltage output: 50 V min z Output clamp diodes z Inputs compatible with various types of logic z Package Type-APG: DIP-16pin z Package Type-AFWG: SOL-16pin ULN2003APG ULN2004APG ULN2003AFWG ULN2004AFWG Type ULN2003APG/AFWG ULN2004APG/AFWG Input Base Resistor 2.7 kΩ 10.
