ULN2803AFW Datasheet, Driver, Toshiba Semiconductor

ULN2803AFW Features

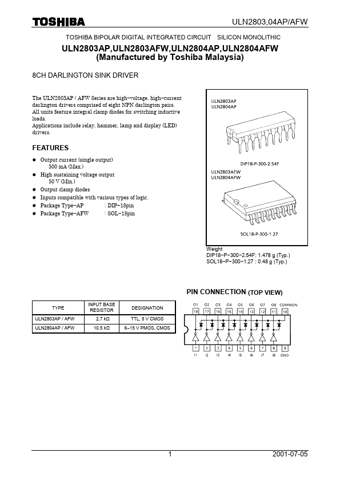

• Driver l Output current (single output) 500 mA (Max.) l High sustaining voltage output 50 V (Min.) l Output clamp diodes l Inputs compatible with various types of logic. l Package Type

PDF File Details

Part number:

ULN2803AFW

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

228.77kb

Download:

📄 Datasheet

Description:

8ch darlington sink driver.

ULN2803AFW Application

• Applications include relay, hammer, lamp and display (LED) drivers. FEATURES l Output current (single output) 500 mA (Max.) l High sustaining vol
