1ZB220-Z Datasheet - Toshiba

1ZB220-Z SILICON DIFFUSED TYPE ZENER DIODE

1ZB6.8~1ZB390 TOSHIBA ZENER DIODE SILICON DIFFUSED TYPE 1ZB6.8~1ZB390 CONSTANT VOLTAGE REGULATION TRANSIENT SUPPRESSORS Unit: mm l Average Power Dissipation l Peak Reverse Power Dissipation l Zener Voltage l Tolerance of Zener Voltage l Plastic Mold Package : P = 1.0W : PRSM = 200W at tw = 200µs : VZ = 6.8~390V : ±10% MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC Power Dissipation Junction Temperature Storage Temperature Range SYMBOL P Tj Tstg RATING 1.0 40~150 40~150 UNI.

1ZB220-Z Datasheet (131.38 KB)

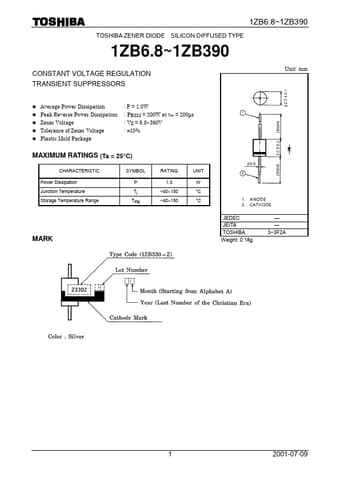

Preview of 1ZB220-Z PDF
1ZB220-Z Datasheet Preview Page 2 1ZB220-Z Datasheet Preview Page 3

Datasheet Details

Part number:

1ZB220-Z

Manufacturer:

Toshiba ↗

File Size:

131.38 KB

Description:

Silicon diffused type zener diode.
